Princess X95.Custom fender hooks.
Six custom hooks. Two tailored profiles.
This Princess X95 project called for six custom fender hooks: three for the upper deck and three for the midship position before the upper deck. Two fitted profiles share Grey WOW #4 leather, Natural White sheepskin lining and 316L stainless steel cores.
Canvas Designers · Riviera Beach, Florida
Serving the marine community since 1985
Construction reference
Every detail, explained.
Explore the materials and components in this reference, then compare the two configurations specified for the Princess X95 project.
A closer look at the construction.

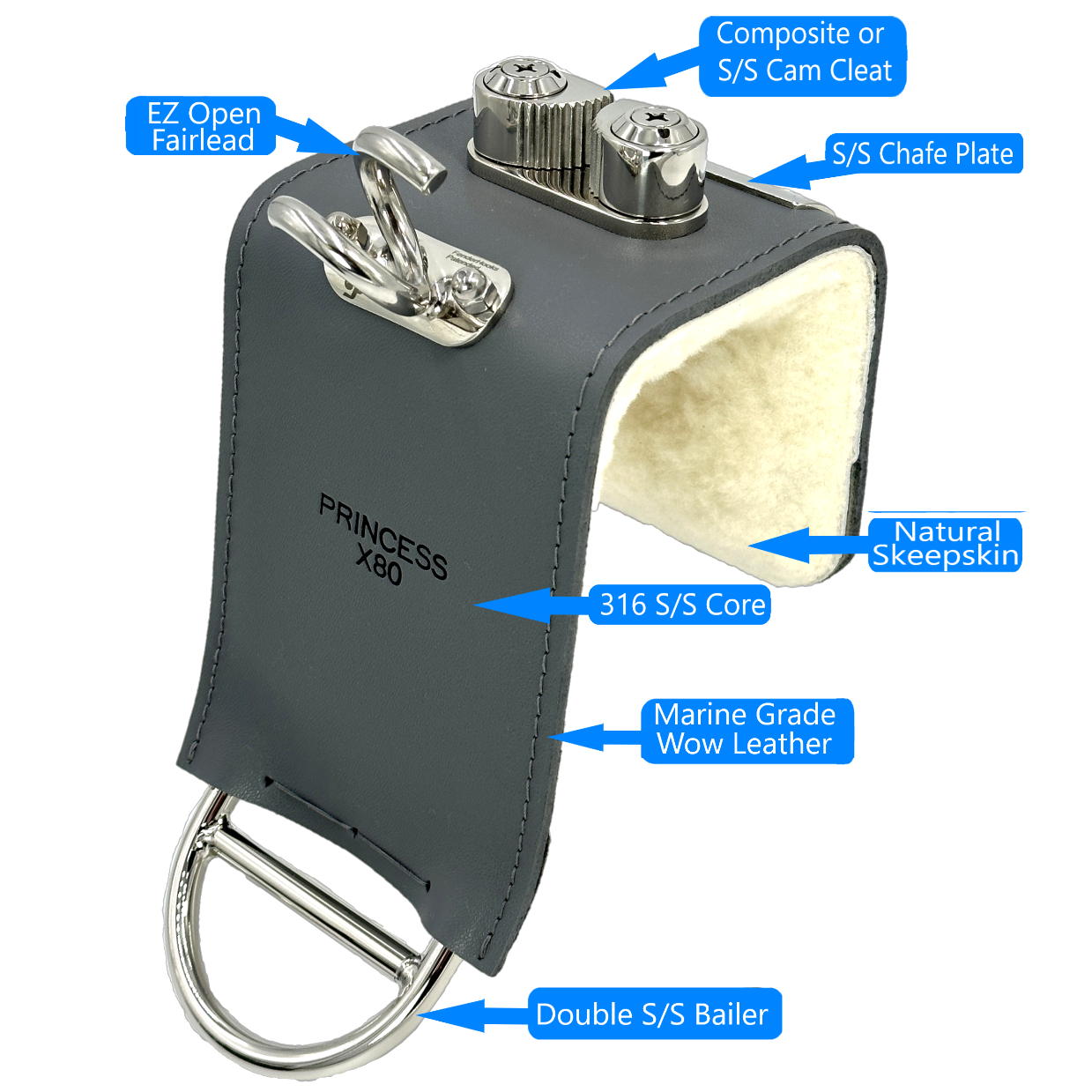

This drawing identifies the covering, lining, core and example hardware. The X95 project follows the two written configurations below; hardware in this X80 reference may differ.
-
Leather outer covering
See how the covering follows the shaped core.
-
Sheepskin inner lining
The drawing identifies the lining on the inside of the hook.
-
Core and example hardware
The reference labels the core, cam cleat and fairlead components.
Project specification
Two profiles. Three of each.
The widths below describe the leather wrap and metal core separately. Both configurations use a 3/16-inch-thick 316L stainless steel core.
01 / 3 custom hooks
Upper-deck fender hook
A wider wrap and core with a custom notch along the inside of the core for the vertical upright.
02 / 3 custom hooks
Midship fender hook with integrated standoff
A narrower wrap and core with a 4-inch standoff built into the metal core and a safety pin with lanyard.
All dimensions are in inches. Profile references come from the project specification and require a location-specific pattern. These dimensions describe this project’s two configurations; the profile for another vessel is confirmed from its own mounting location.
WOW leather samples
Find your finish.
Grey WOW #4 is the finish specified for this Princess X95 project. Browse these seven leather texture samples when planning your own custom fender hooks.
The other colors are sample finishes to discuss with our team. Confirm your choice and material availability before ordering.
Select a swatch to open its supplied sample image. Screens and lighting affect color; confirm the finish with our team before ordering.
Discuss leather color and fitThe visible details
The fit, up close.
A side view shows the covered profile and inner lining. The view along the rail makes the projecting hardware and surrounding space easier to see.
The photographs are references from the existing Princess fender hook gallery. Exact dimensions and the six-hook quantity are documented in the project specification above.
A profile for each mounting location.
The upper-deck hook needs room for the vertical upright. The midship design addresses its location with a 4-inch standoff integrated into the core. Those details belong to the profile, rather than a single universal hook shape.
Materials and hardware
Materials with a purpose.
Both sets specify Grey WOW #4 leather over a 3/16-inch-thick 316L stainless steel core, lined inside with Natural White sheepskin and sewn with black thread. Each hook has one new-style cam cleat and two stainless steel EZ Open Fairleads.
Custom marine metal fabricationThe covering
Grey WOW #4 leather
Both configurations share the same leather finish and black stitching.
The lining
Natural White sheepskin
The inside of each custom hook is lined with Natural White sheepskin.
The core
3/16-inch 316L stainless steel
Both cores are 0.1875 inch thick. The two configurations have different core widths.
6 cam cleats. 12 EZ Open Fairleads.
Three hooks in each configuration give six new-style cam cleats and twelve stainless steel EZ Open Fairleads. The three midship hooks each add one safety pin with lanyard.
The fitting detail
Start with the mounting location.
The upper-deck design must rest against the vertical upright. It must not be hung over the glass wall. The custom inside notch accommodates the thickness of that upright.
At the midship location, the requested 4-inch standoff is part of the stainless steel core. It is a feature of the fabricated profile, with a safety pin and lanyard specified for each hook in this set.
Upper deck
Do not hang the hook over the glass wall. It must rest against the vertical upright.
Project questions
Your project questions, answered.
Clear answers about quantity, construction, leather colors and the differences between the two hook profiles.
Ask about a custom fitHow many fender hooks were specified for this Princess X95 yacht project?
Six custom fender hooks were specified: three upper-deck hooks and three midship hooks. Both sets use Grey WOW #4 leather, Natural White sheepskin lining and black thread.
How do the upper-deck and midship hooks differ?
The upper-deck hooks have a 6-inch leather width and a 5-inch metal core width, with a custom inside notch for the vertical upright. The midship hooks have a 4-inch leather width and a 3-inch metal core width, with a 4-inch integrated standoff and one safety pin with lanyard per hook.
Can the upper-deck hooks hang over the glass wall?
No. This project specification requires the upper-deck hooks to rest against each vertical upright. Do not hang them over the glass wall.
What stainless steel and thickness are used in the cores?
Both configurations specify 316L stainless steel cores that are 0.1875 inch, or 3/16 inch, thick. The separate 5-inch and 3-inch measurements describe the core widths.
Is the 4-inch standoff a separate attachment?
No. The midship configuration specifies a 4-inch standoff built into the metal core. Each of the three midship hooks also includes one safety pin with lanyard.
Which leather color was specified, and what other WOW colors can I review?
This project specifies Grey WOW #4 leather. The sample gallery also shows WOW #1 Brown, #2 Matte black, #3 Navy, #5 Gloss black, #6 White and #7 Tan. Ask our team to confirm the finish and material availability for your project.
Does the Princess X80 diagram show this X95 project’s exact construction?
No. The Princess X80 diagram is a component reference. This Princess X95 project follows the two configurations listed above, including their distinct dimensions, notch, standoff and hardware. Components shown in the X80 reference may differ from this order.
How do I request fender hooks for my Princess yacht?
Contact Canvas Designers in Riviera Beach, Florida with your yacht model, photographs of the intended mounting locations, rail or upright details and the quantity you need. Call 561-848-2111 or use the dedicated fender hook inquiry form to discuss patterning, leather color and the configuration for your vessel.
